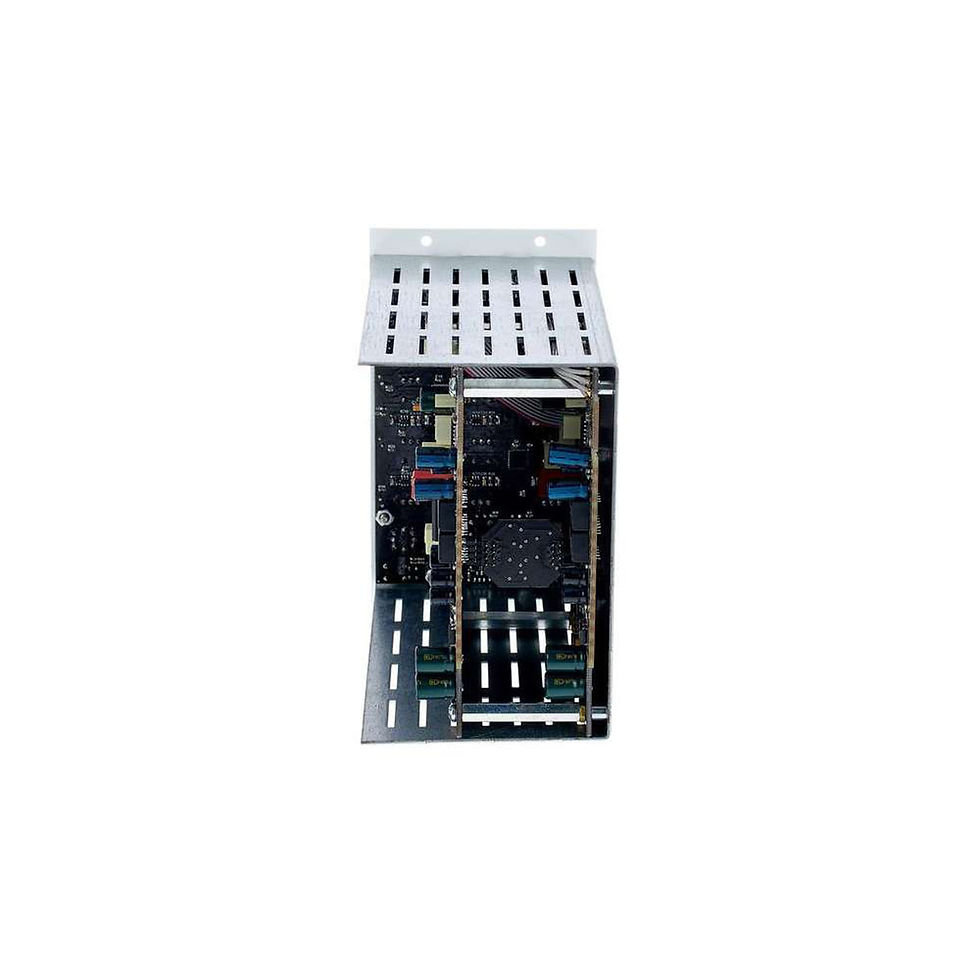

WesAudio Hyperion 500 Series Stereo Analog Equalizer with Digital Recall

The Hyperion from WesAudio is a fully analog parametric EQ with +24dBu of headroom that features a lot of innovative improvements that no other processor on the market provides.

- +24dBu of headroom

- Stereo / Dual mono / Mid/Side operation mode

- 4-Band EQ with switchable gain range for 5db or 15dB boost or cut per band:

- High band – 2kHz to 25kHz (bell or shelf)

- High-Mid band – 600Hz to 8Khz with full Q control

- Low-Mid band – 200Hz to 2.5Khz with full Q control

- Low band – 30 Hz to 350Hz (bell or shelf)

- HPF with 12dB/Oct or 6 dB/Oct slopes

- Each band features its own Bypass switch

- Essentially Noiseless parameter changes

- Proprietary THD implementation

- Flexible DAW/Live plug-in control for instant recall

- 12 touch sensitive encoders allows to record automation

- True bypass

- In and OUT metering with clip detection

- A/B compare feature

- Frequency response: 10Hz-150kHz (-2dB)

- THD+N all bands gain “0”: 0.003% (1kHz,0dBu)

- THD+N +15dB band boost: <0.15% (1kHz,0dBu)

- Input impedance: 10kohm

- Output impedance: <100ohm

- Max signal level: +24dBu

- Crosstalk:< -100dB

- THD (MID switch): 1%

- THD (HIGH switch): 2.5%

- Power consumption: 150mA per rail

- Dimensions : 76x133x158mm

- Unit needs to warm up for about 5 minutes before usage as its temperature may affect some internal variables – like frequencies of each band, and very slightly gain and Q settings.

- Each band can boost or cut in configurable gain mode (It affects also output control)

- 15dB boost or cut in 0.25 dB steps,

- 5dB boost or cut in 0.083 dB steps,



Each frequency control has predefined amount of steps in logarithmic scale

- HF frequency – 256 steps,

- HMF frequency – 256 steps,

- LMF frequency – 256 steps,

- LF frequency – 200 steps,

- HPF frequency – 128 steps.
