Classic tone and control on the go.
Comprised of a rugged, portable chassis with world-class preamp, compressor and DI circuits as well as two channel operation, Vari-phase, Silk and DI/mic blending capabilities, the Portico 5017 is an innovative and powerful tool for recording or live performance.

Features Two Channel Operation

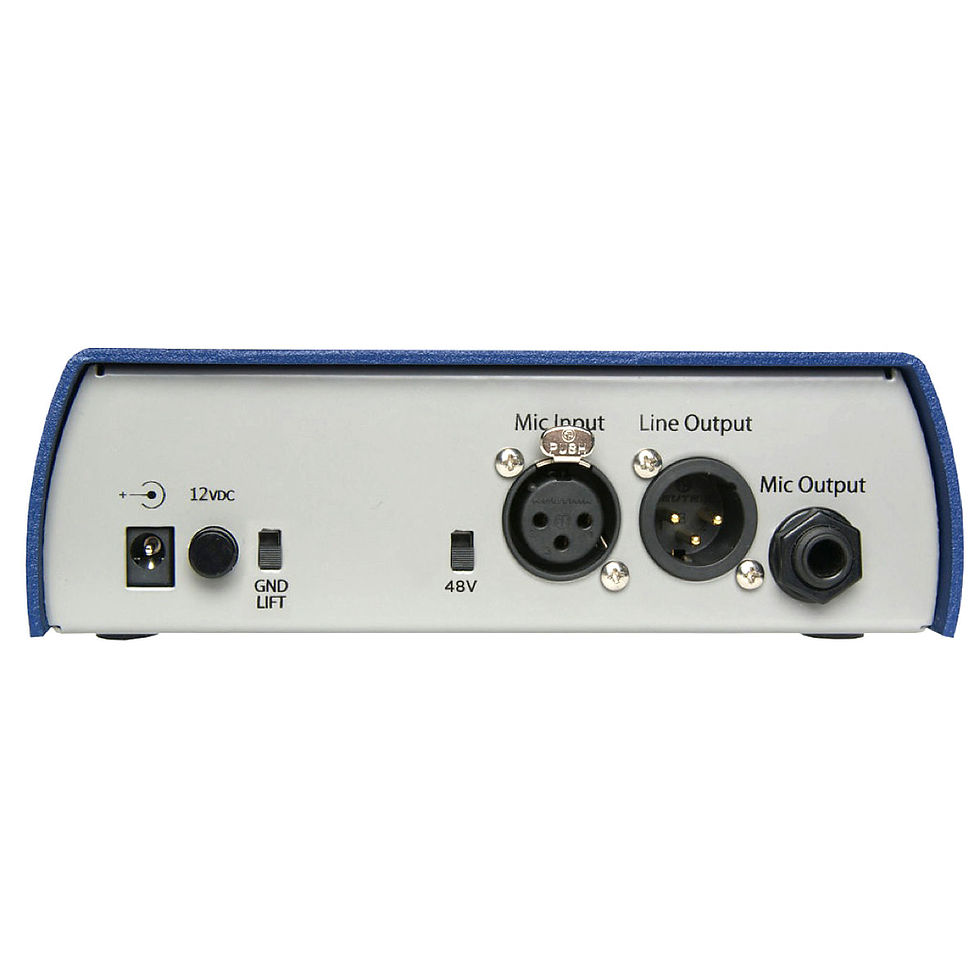

With two transformer coupled outputs, the 5017 has separate line outputs for the DI/Blend and Mic signals when the blend control is set to fully DI. The mic output is always independent.

Silk
Pushing the Silk button engages the Silk circuit, which enhances the source’s harmonic content in a manner very reminiscent of many of Rupert’s class-A vintage design.

Mic Gain
A 12-way precision rotary switch covering Line (0) and Mic from 0 to 66 dB in 6 dB steps.

Inst Gain
Continuous gain control from 0dB to 30dB.

Thru & Inst 1/4” Phone Jacks
Balanced or unbalanced Hi-Z input for instruments, with a THRU output to send signal to an amplifier.

+48V Phantom Power
Provides 48V phantom power to microphones. Controlled by a switch on the back of the unit.

High Pass Filter
The high pass filter is a valuable aid in any signal chain, but particularly so in a microphone preamplifier. Signals below 80Hz can be attenuated at a rate of 12db / octave, getting rid of building rumble, motor hum, etc.

Polarity
Push button inverts the polarity of the mic input signal path. The symbol “Ø” is often used to denote opposite polarity.

Vari-Phase
When engaged, the VARI-PHASE control rotates the phase incrementally, allowing two signals with the same source to be phase aligned. This control is most apparent when the signals being combined are at roughly equal levels, and is generally used when blending an instrument’s direct signal with its amplified signal, as captured by a microphone.

The Compressor
Based around a new LDR (light dependent resister) design, the 5017’s opto-coupler compressor has been simplified to a single threshold control with auto make up gain. By default, the compressor is set to a fixed 2:1 ratio with fixed attack and release. To set the compressor, simply dial the threshold control down until the desired amount of compression is achieved. An LED light indicates when the compressor is active.

Indicators
Indicators on the 5017 denote signal presence and clipping on both DI and mic signals, as well as compressor activation.

Internal Jumpers
Two internal jumpers in the 5017 can be set to change the compressor from the mic channel to the DI / blend channel, and to change the compressor time constant from standard to fast.

The Specs
Frequency Response
Main Output, no load.-0.2 dB @ 10 Hz-3 dB @ 160 kHz
Noise
Measured at Main Output, unweighted, 22 Hz - 22 kHz. Terminated 150 Ohm.With gain at unity better than -100 dBuWith gain at 66 dB better than -62 dBuEquivalent Input Noise better than -128 dBu
Noise Factor
1.5 dB
High Pass Filter
80 Hz, 12 dB/Octave Bessel
Maximum Output Level
Maximum output from 20 Hz to 40 kHz is +23 dBu
Total Harmonic Distortion And Noise
@ 1 kHz, +20 dBu output: Main Output: Better than 0.001%@ 20 Hz, +20 dBu output: Main Output: Better than 0.002%
Silk Engaged
Better than 0.2% Second harmonic
Compressor Threshold
Continuously Variable from -20 dBu to +10 dBu
Ratio
Fixed at 2:1
Attack & Release
FAST MODE: Attack 40ms , Release 40ms
SLOW MODE: Attack 100ms , Release 350ms
Phantom Power
+48 Volts DC +/- 1%
Power Requirements
12VDC is optimal voltage, but 9-15VDC is acceptable
Current Consumption
@ 9VDC Current is 1.3 A typical: Power = 11.7W@ 12VDC Current is 1.0 A typical: Power = 12.0 watts@ 15VDC Current is 800 mA typical: Power = 12.0 watts
Dimensions
7.5″ (deep) x 6.5″ (wide) x 2″ (high)
