Upholding a valued tradition of offering quality ribbon mics at affordable prices, Pinnacle Microphones bestows upon thee, the Fat Top II Stereo Pair short ribbon microphone.

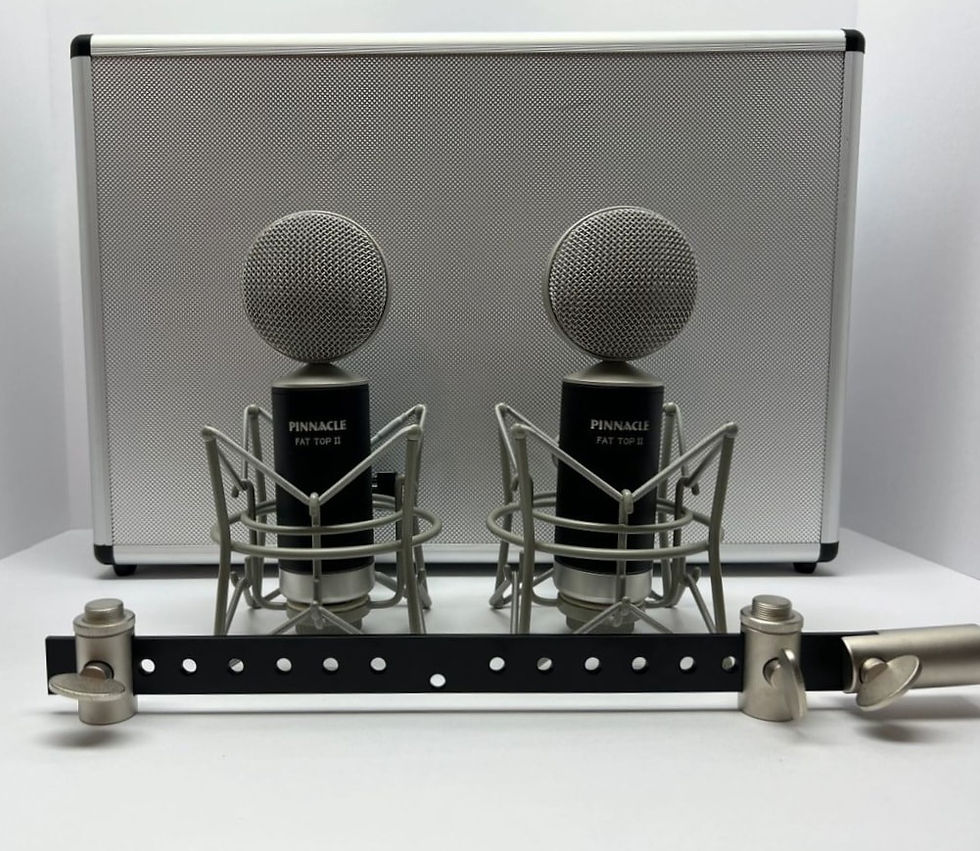

The Stereo Pairs include an upgraded basket-style shockmount and silk screened Blumlein stereo bar with mounting indicators. The Fat Top II has a brass body to help protect the microphone from stray RF noise and is larger than its predecessor for easier handling. Also incorporated is a reinforced neck and grill assembly along with upgraded plating on its hardware and also offers a gold-plated XLR connector. The Fat Top II is at home in both project and professional studios, as well as live on stage.


Mounted on a through-hole circuit board, the Fat Top II includes a Lundahl LL2913 transformer. Each microphone is carefully assembled and tested at our headquarters in Olympia, Washington. The Fat Top II is an excellent choice for guitar cabinets, vocals, horns, strings, and drum overheads.


The Features

•Lundahl LL2913 transformer

•Unique polished radian-grille design Shock mount

•Hand-tuned ribbon element

•True figure-8 pattern

•Balanced audio input signal to both sides of the ribbon assembly

•Suited for guitar cabinets, drum overheads, vocal, piano, horns, strings, and more



The Specs

Type - Ribbon (velocity) Microphone

Ribbon Type & Dimensions - 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)

Polar Pattern - Symmetrical Figure 8

Sensitivity - -49.2 dB (3.5 (mV/Pa)

Frequency Response - 30 to 15 KHz (+/- 3dB)

Impedance - <=200 Ohms

Recommended Load Impedance - 1000 Ohms

Max.SPL (1% THD @1000 Hz) - 135 dB

Equivalent Noise Level - to IEC 268-4 (A weighted) 17dB

S/N ratio: re 1Pa - 70 dB

Connector - 3-Pin Male XLR

Size: Diameter - 3” (O.D. grill), overall length 6 1/2”, 7/8” (O.D. body)

Pinnacle Microphones Fat Top II Black w/Lundahl Stereo Pair

$979.00Price
  • Pinnacle Microphones Fat Top II Black w/Lundahl Stereo Pair
  • Upholding a valued tradition of offering quality ribbon mics at affordable prices, Pinnacle Microphones bestows upon thee, the Fat Top II Stereo Pair short ribbon microphone.
