Galaxy Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world’s first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.

INTEGRATION
More streamlined workflow, less clutter
The interface is designed to be the hub of your entire recording environment that eliminates the need for any expansion modules and cards, thus centralizing your entire setup. Switching from project to project is effortless with the fast recall of presets and adapting to different workflows is made easier by allowing you to address numerous applications using a single hardware frame.

CONNECTIVITY
World’s first 64-channel AD/DA converteri n 2U rack space
Galaxy 64 Synergy Core is the only interface to offer two Dante ports for audio networking, four HDX ports for a full array of 128 channels in Pro Tools as well as Thunderbolt connectivity. These features can be used simultaneously with multiple systems for easy adaptation to different workflows with preferred DAW applications. This is all made possible by utilizing our exclusive FPGA configuration and advanced digital routing.

Analog
- 8x DB25 line inputs(64 channels at 24-bit, 192kHz)
- 64 аnalog input channels over 8 DSUB-25 connectors with AC/DC coupling switch (TASCAM standard)
- 8x DB25 line outputs(64 channels at 24-bit, 192kHz)
- 64 analog output channels over 8 DC-coupled D-Sub 25 connectors (TASCAM standard
- 1× Stereo headphone output(24-bit, 192kHz)
- Stereo TRS jack for headphone monitoring with a D/A converter providing 122dB of headroom.
- 1× Stereo monitor output pair(2 channels at 24-bit, 192kHz)
- L/R studio speaker outputs on 1/4-inch TRS connectors with a dedicated converter providing 130dB of headroom

Digital
- 2x DANTE® Ports(64 channels at 24-bit, 48kHz)
- Primary and Secondary Dante® connections on RJ 45 (Ethernet) ports. The number of input and output audio channels is sample rate-dependent
- 4x HDX Ports(128 channels at 24-bit, 192kHz)
- Four HDX ports enable interfacing to two HDX cards simultaneously for a primary/secondary recording setup or a full array of 128 channels
- 2x Thunderbolt 3™ Ports(64 channels at 24-bit, 192kHz)
- Two Thunderbolt 3 ports for PC/Mac connection. The left port enables USB-C connection to a secondary computer for remote control purposes.
- 2x Optical MADI Ports(64 channels at 24-bit, 48kHz)Should the need for more channels arise, use the MADI ports on optical SC connectors to daisy-chain with another audio interface
- 2x AES/EBU Ports(2 channels at 24-bit, 192kHz)
- Two AES/EBU ports on XLR connectors for digital expansion to AD/DA converters or monitoring systems.
- 2x S/PDIF (input and output)(2 channels at 24-bit, 192kHz)Two S/PDIF ports RCA connectors for digital expansion to AD/DAconverters or monitoring systems.

Clocking
- 1x Word clock input
- 6x Word clock outputs
- 2x Loop sync (input and output)
- 1x 10M atomic reference input
- 1x 10M atomic reference input

DANTE AUDIO OVER IP
Build your network
This configuration provides straightforward integration and reliable redundancy, with the secondary RJ-45 port serving as a backup 64-channel Dante route. Galaxy 64 Synergy Core allows extensive real-time backup and multi-level recording options throughout every production stage.

SOUND
High-fidelity conversion
High-spec AD/DA converters provide low total harmonic distortion and signal-to-noise ratio for artifact-free recording sessions. The Galaxy 64 Synergy Core does not require external converters for monitoring because of the dedicated mastering-grade monitor converter. It facilitates audio reproduction with a wider soundstage for critical listening without coloration or signal degradation.

Industry-leading clocking technology
Our proprietary 64-bit Acoustically Focused Clocking and Jitter Management algorithm ensure the kind of audio quality that sets apart the legendary Isochrone Trinity master clock. The Galaxy 64 Synergy Core delivers the same increased width, separation, and detail in your musical performances.
- D/A stage dynamic range 128 dB
- A/D stage dynamic range121 dB
- MONITOR converter dynamic range130 dB

EFFECTS PROCESSING

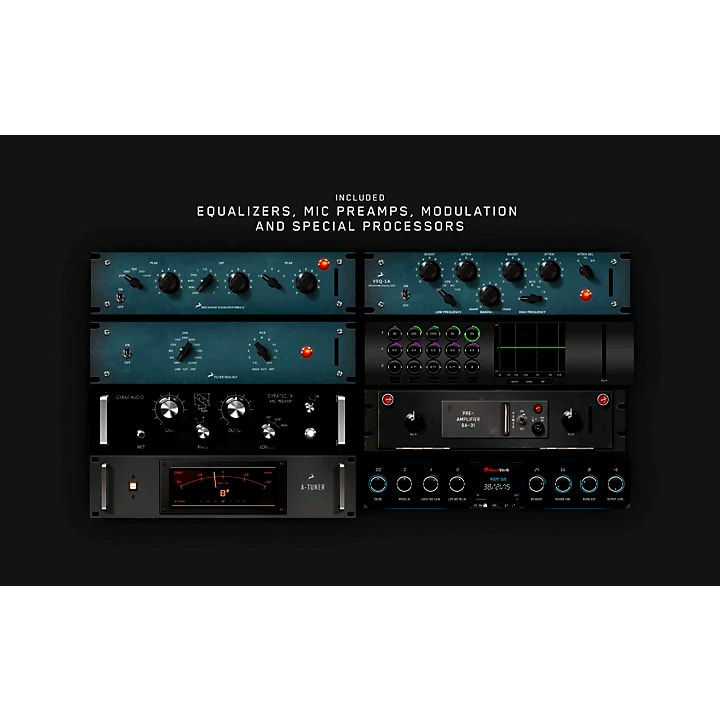

36 Real-time effects
Galaxy 64 Synergy Core includes an expandable library of 36 real-time effects. It is largely composed of software emulations of vintage analog gear found in world-renowned recording studios.
- 18 EQUALIZERS
- 12 COMPRESSORS & LIMITERS
- 2 PREAMPS & CHANNEL STRIPS
- 1 REVERB
- 1 DE-ESSER
- 1 TREMOLO
- 1 AUTOWAH PEDAL

Synergy Core
Synergy Core is currently one of the fastest-growing real-time effects processing platforms in the pro audio industry. In short, the Antelope Audio Synergy Core technology is a combination of the best of FPGA and DSP processing, brought together to give you a powerful, yet simple to use effects platform. It allows you to offload all processing to the interface thus saving your host computer CPU & memory

CONTROL PANEL
Intuitive control
The software Control Panel provides intuitive control of all settings, gain adjustments, real-time effects, metering, and presets. From the Control Panel you have immediate access to the flexible Routing Matrix and the low latency internal mixers.

Routing Matrix
The comprehensive Routing Matrix houses an advanced digital patch bay.

Low Latency Internal Mixers
The Control Panel has 8 low latency 32-channel mixers that can be split into individual cue mixes and sub-mixes, allowing you to distribute headphone mixes for your musicians while applying pan, reverb, other effects and stereo link. Each mixer has 32 inputs and a stereo output making them ideal for real-time multi-channel hardware-based monitoring and signal summing.

Remote Controller & Standalone Operation
Allows interfacing to a second computer via USB-C for the purposes of remote control. This way, you can run dedicated live/recording and Control Panel setups without being tied to a single computer. Network control is also a possibility through a proprietary client/server system.
